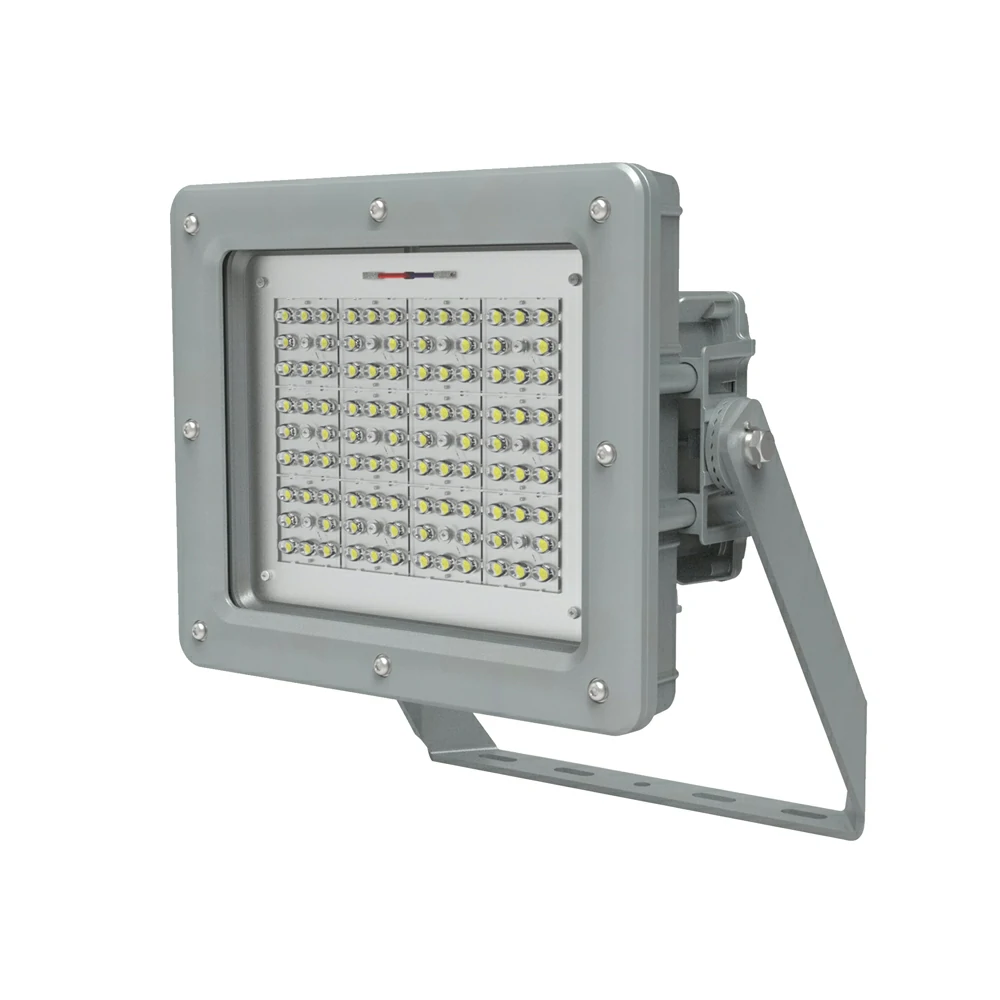

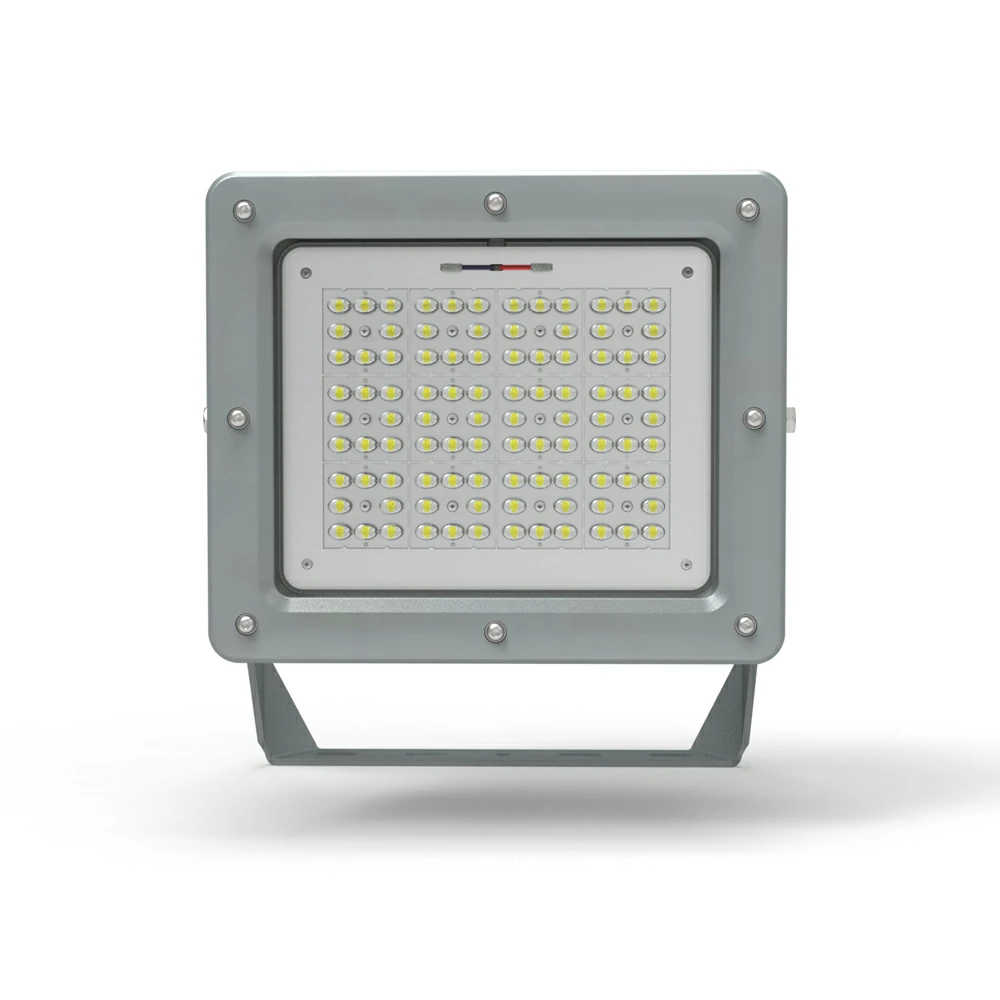

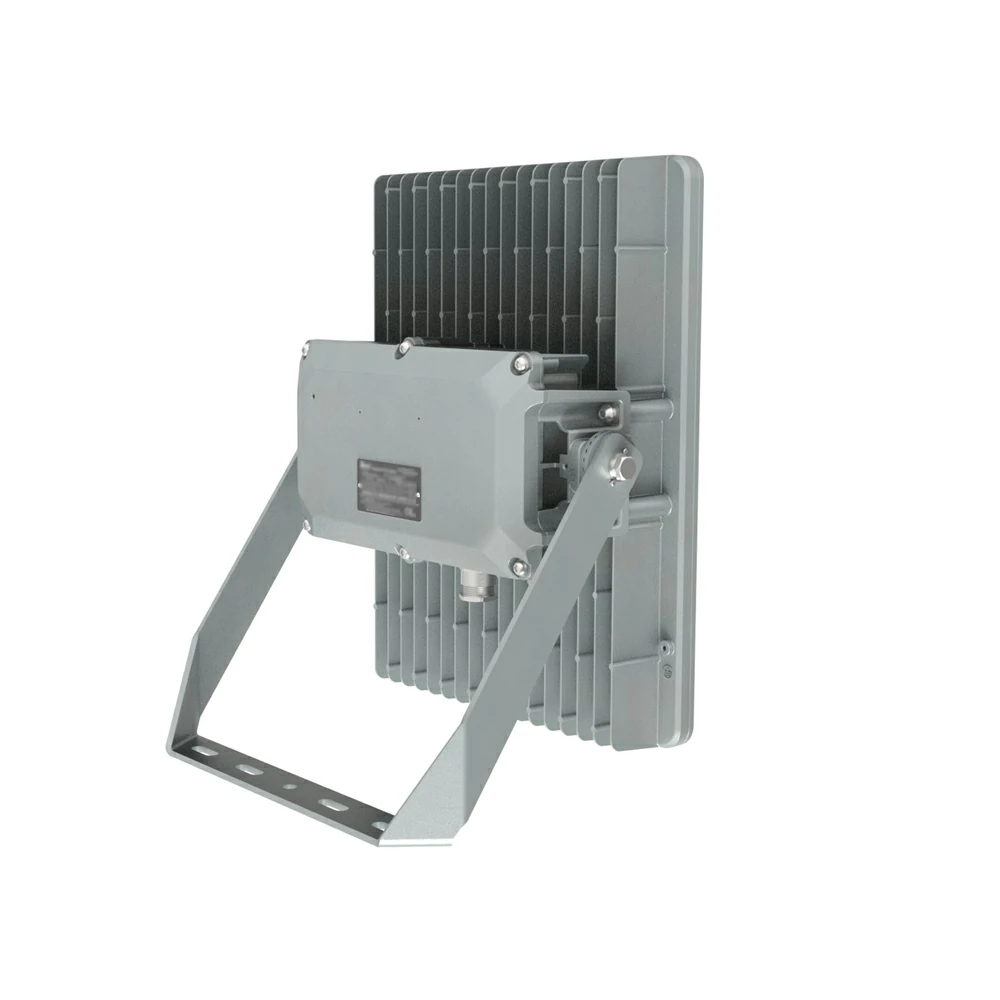

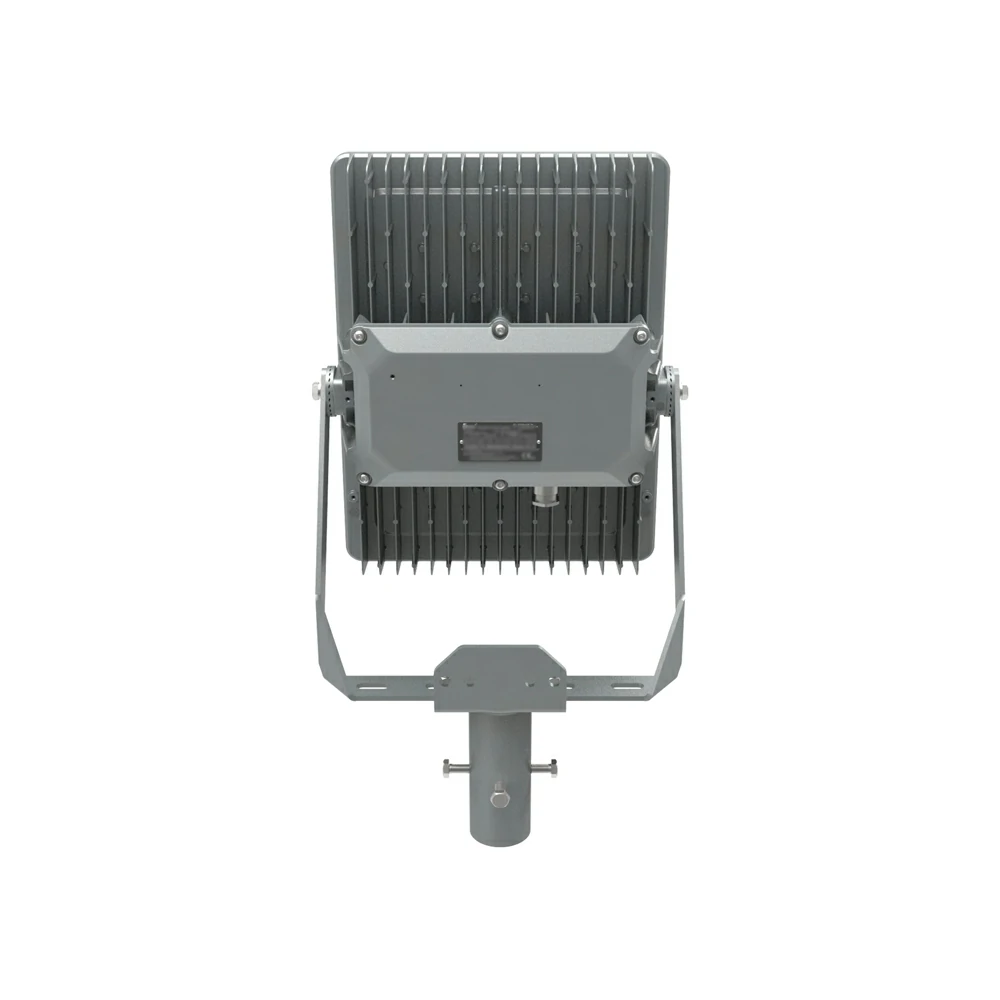

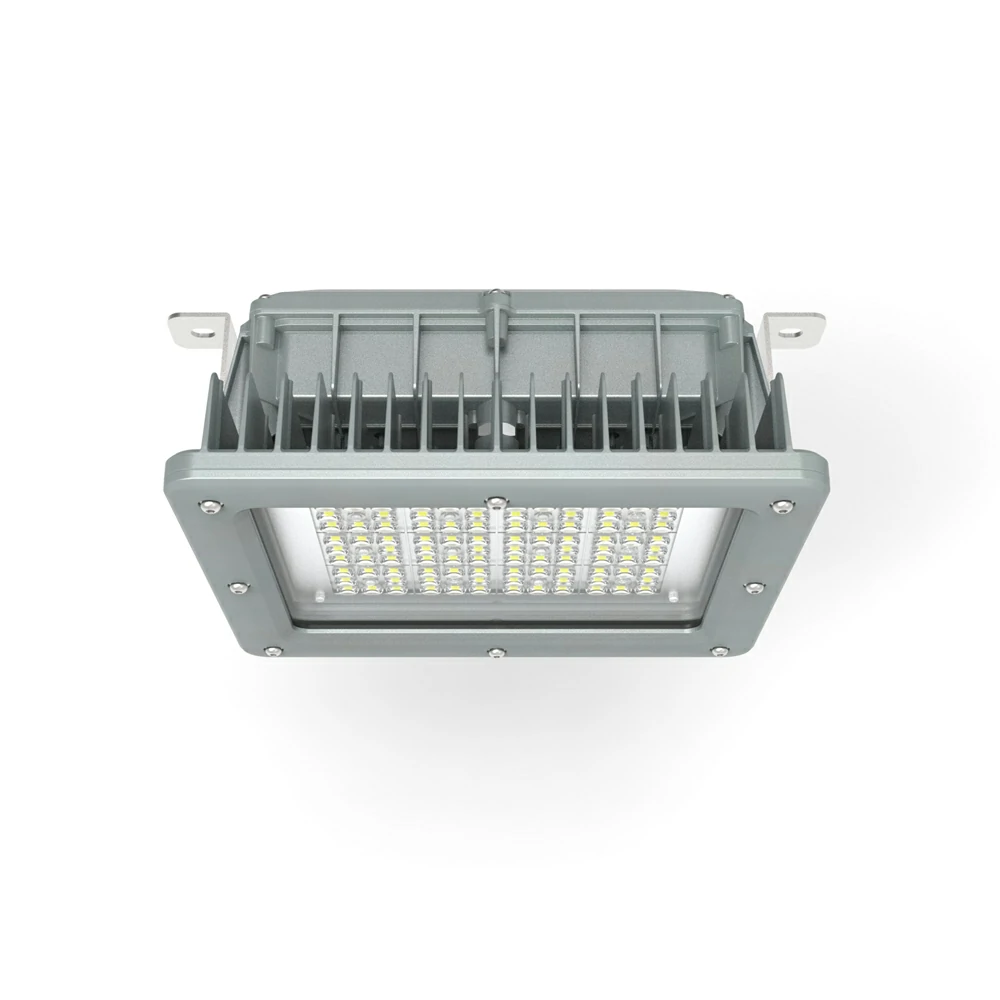

KHJ Lighting-Seal(B) Explosion-proof LED High Bay Light

Features:

Wide power range from 80W to 300W
Luminaire efficacy up to 150lm/w
Widely Voltage: 100-277VAC and 347-480VAC and 141-392VDC and 491-679VDC
Different beam angle for optional(Narrow, Medium,Wide)
Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
All exposed fasteners with quality stainless steel 316

Contact us for this product

lmportant Specification:

Certificate	ATEX, IECEx , CE, RoHS
Classification	Group II, Zone 2 & 22
Ex Mark	Ex ec, Ex tc
IP Grade	IP66
Rated power	80W/100W/120W/150W/200W/240W/300W
Voltage	100~277VAC 141~392VDC(standard) 347~480VAC 491~679VDC(optional)
Ambient Temperature	-40℃-+55℃(80-300W)/-40℃-+65℃(100W/120W)
Luminaire Efficacy	Up to 150lm/w
Power factor	>0.98
THD	<10%
Weight	6.4kg(80-150W), 8.9kg(200-300W)
Size	332282167mm(80W/100W/120W/150W) 332435167mm(200W/240W/300W)
Enclosure	Die-casting aluminium alloy
Color	Grey RAL 7040
Protective cover	Tempered glass, stand 7J impact
Cable Entry	2XNPT 3/4” (M201.5, M251.5 are optional)

1.Catalog

Catalog.pdf
Click Here

Simple Catalog.pdf
Click Here
2.Seal-B.IES

Seal.IES
Click Here
3.Specification

S-KSeaL-Ex-NV1.0-B.pdf
Click Here
4.User manual

I-Seal-Ex-NV1.0-B-A4.pdf
Click Here

Case study

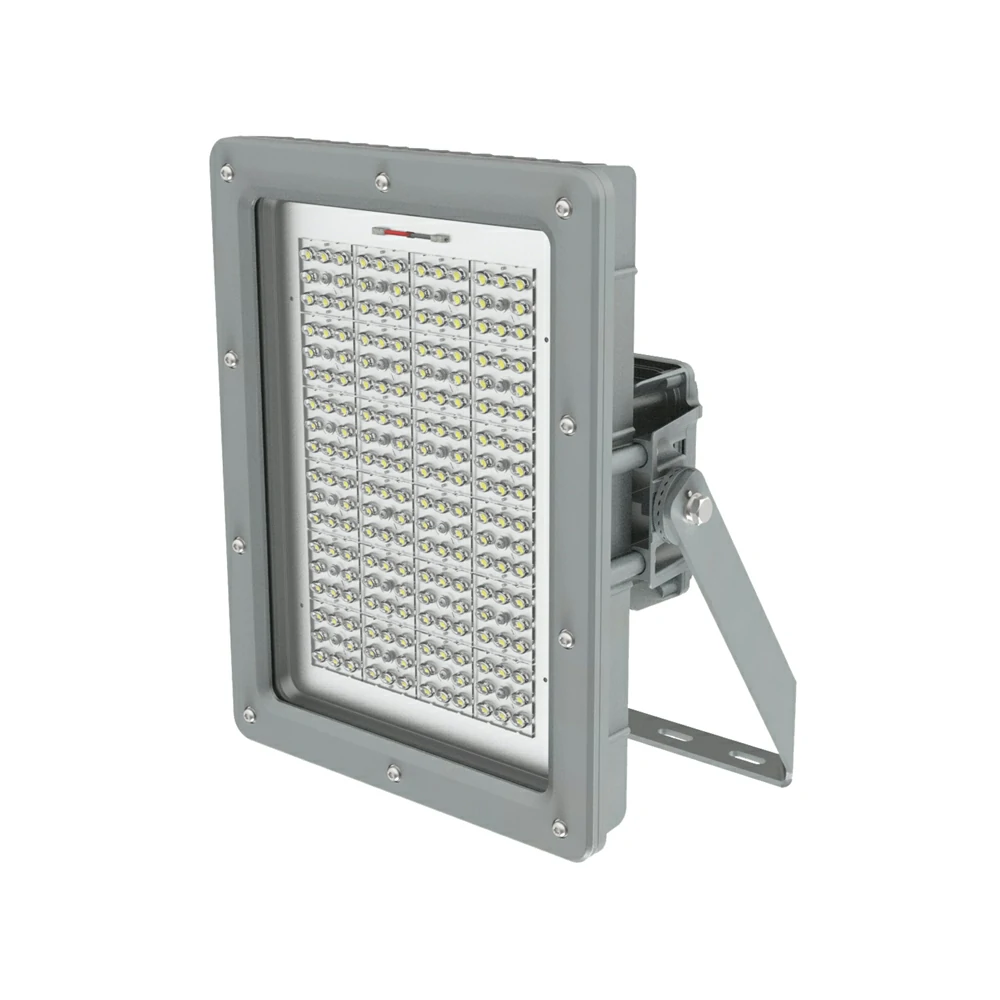

The Seal(A) series consist of 2 sizes :small size ( 80-150w)，large size (200-300w), can be widely used for hazardous area Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present;
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.
