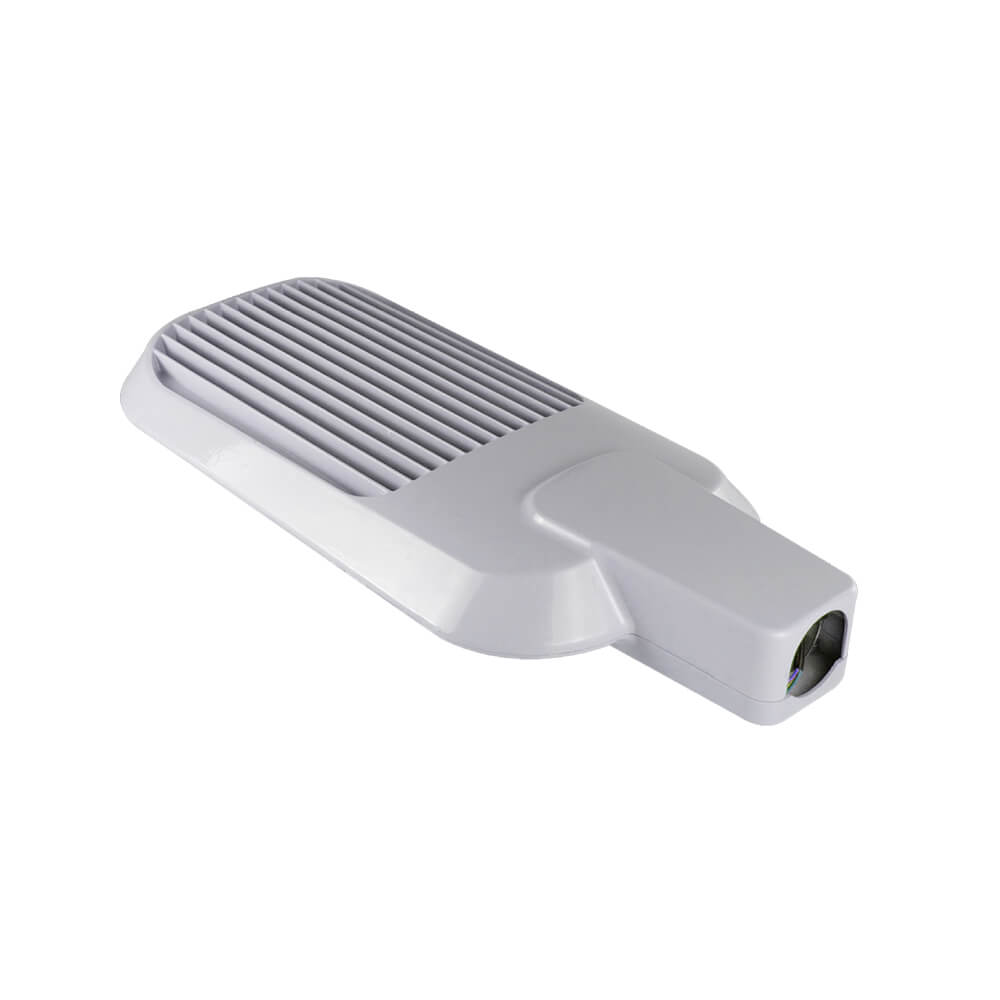

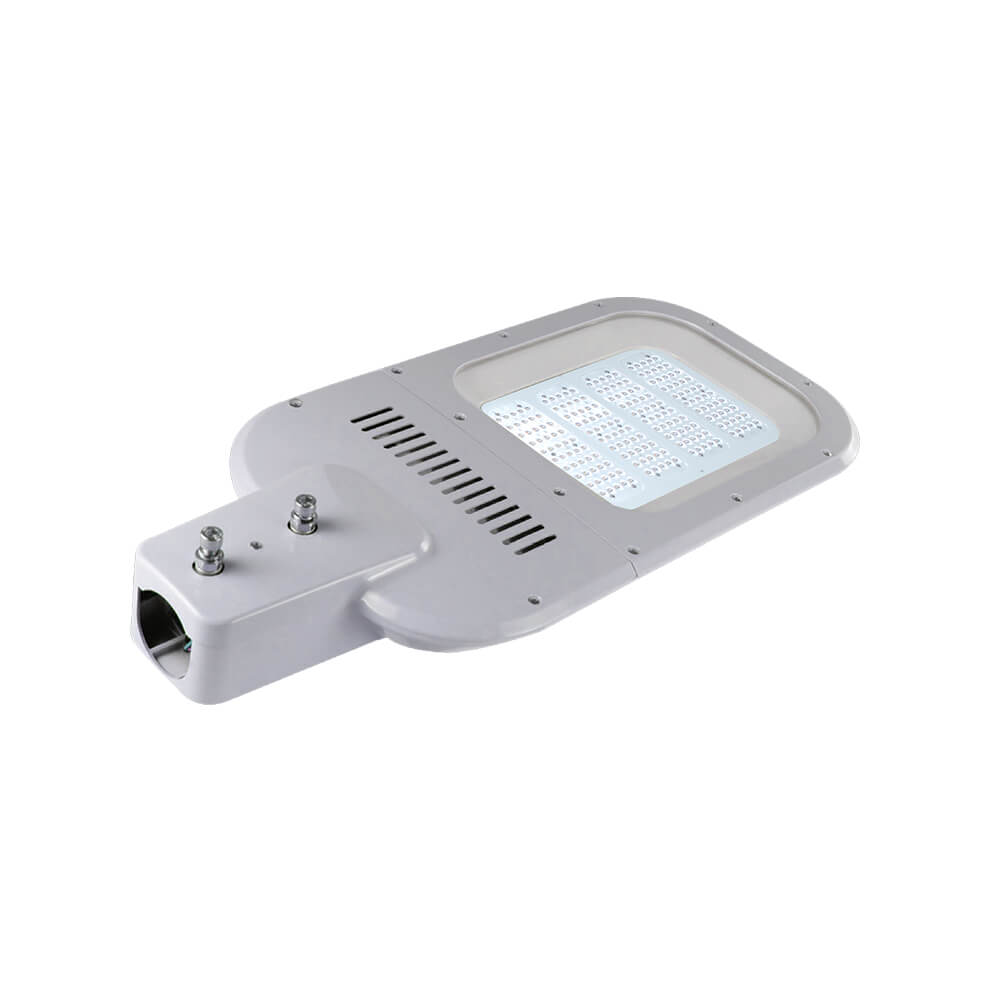

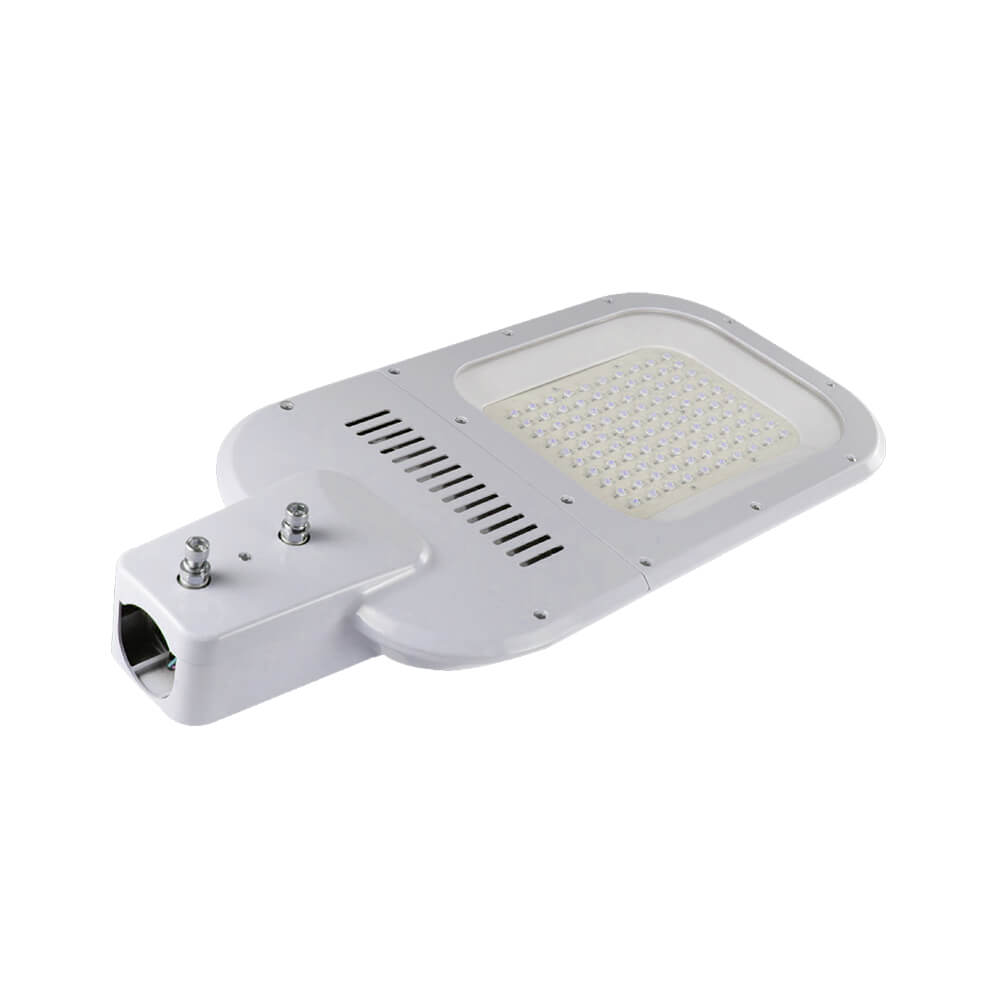

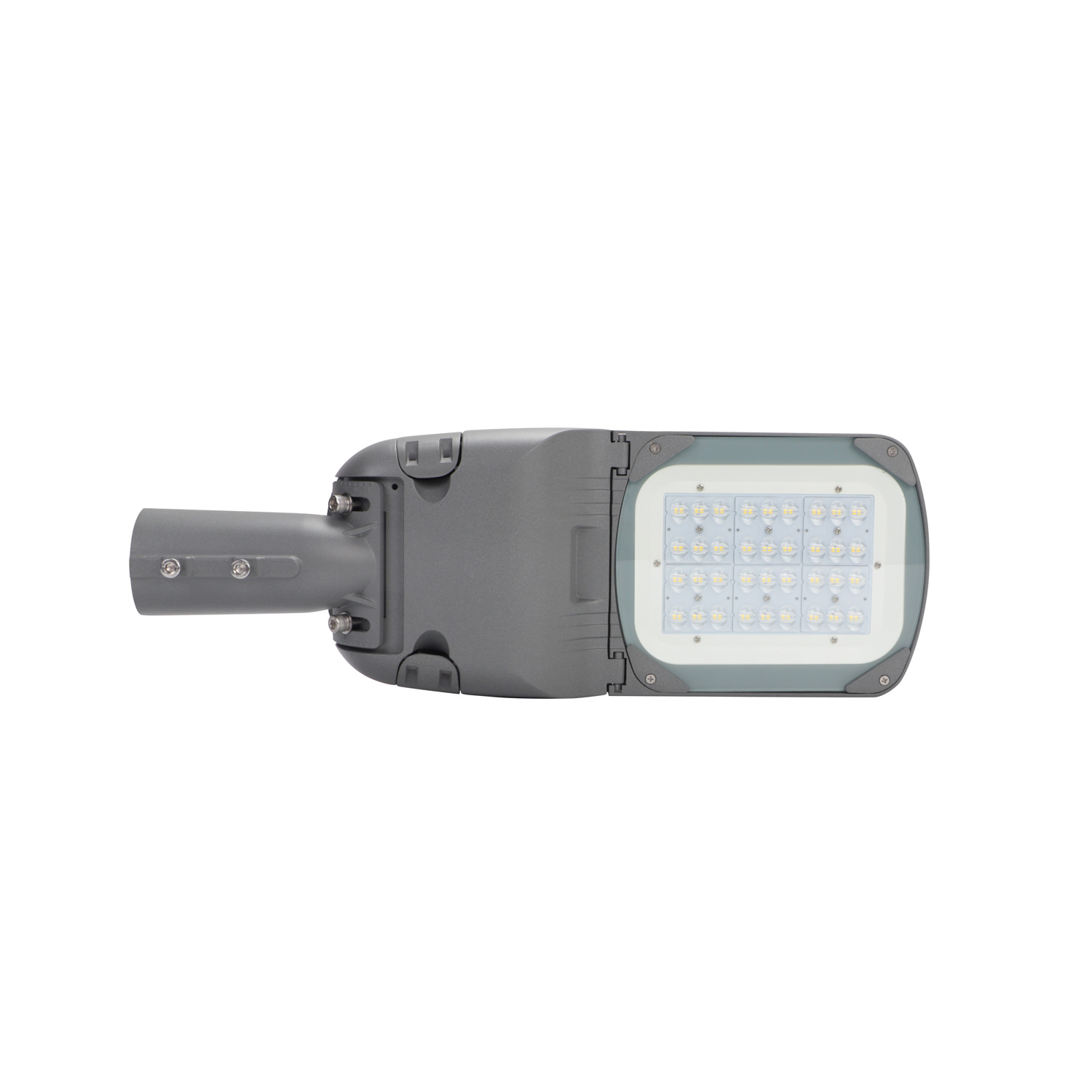

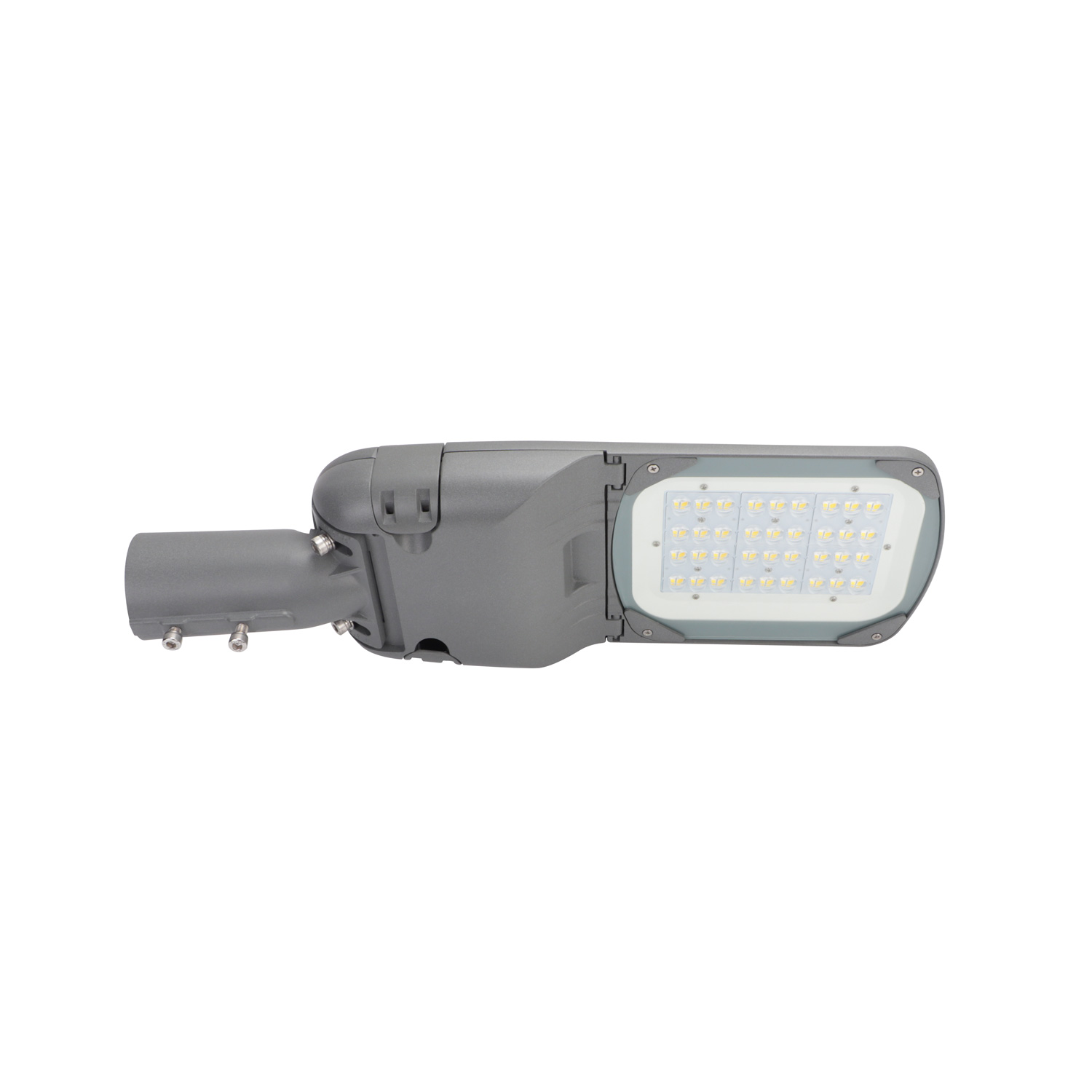

KHJ Lighting-Venus LED street Light

Features:

  • 80~220W
  • Luminaire efficacy up to 126lm/w
  • Widely Voltage: 100-277VAC.
  • Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
  • Low THD around 10%,Less interference
  • 5 years performance warranty

lmportant Specification:

Certificate CE, RoHS
IP Grade IP66
Rated power 80W/100W/120W/150W/200W/220W
Voltage 100-277VAC
Ambient Temperature -40℃-+55℃
Luminaire Efficacy Up to 126lm/w
Power factor >0.98
THD <10%
Weight 8Kg(80W),9Kg(100W),10Kg(120W),11Kg(150W),12Kg(200W),13Kg(220W)
Size 700*320*93mm(80W,100W,120W),825*360*93mm(150W,200W,220W)
Enclosure Die-casting aluminium alloy
Color Grey RAL7040
Protective cover Tempered glass, stand 7J impact

Case study

Polaris luminaire with self-contained battery unit and automatic function monitoring. Nickel-hydrogen(Ni-MH) battery, 300 cycles life span. Overcharge, over discharge and short circuit protection. Normal use 6W, Emergency power 0.5W. Battery duration time about 3 hours.

Our Polaris installed in
