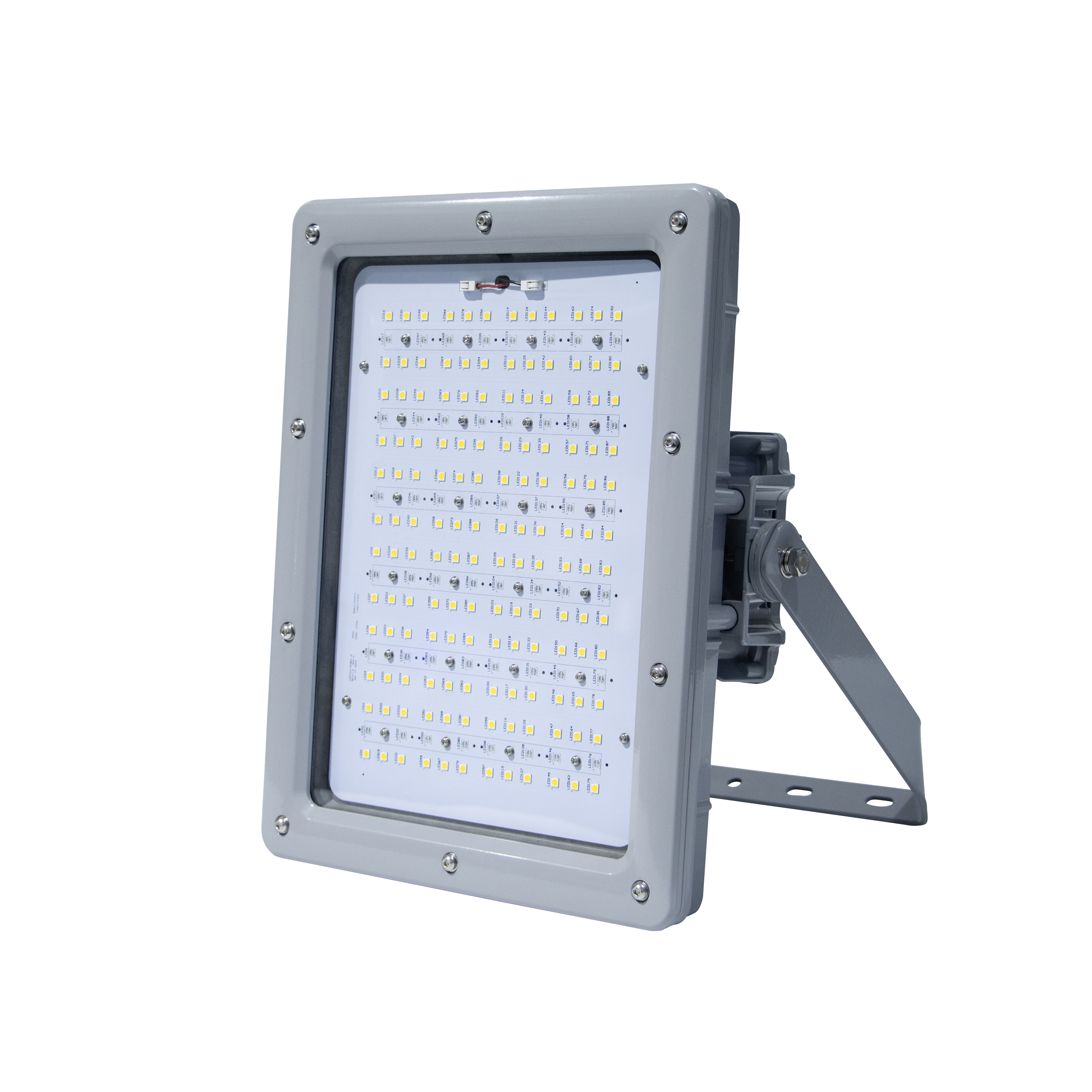

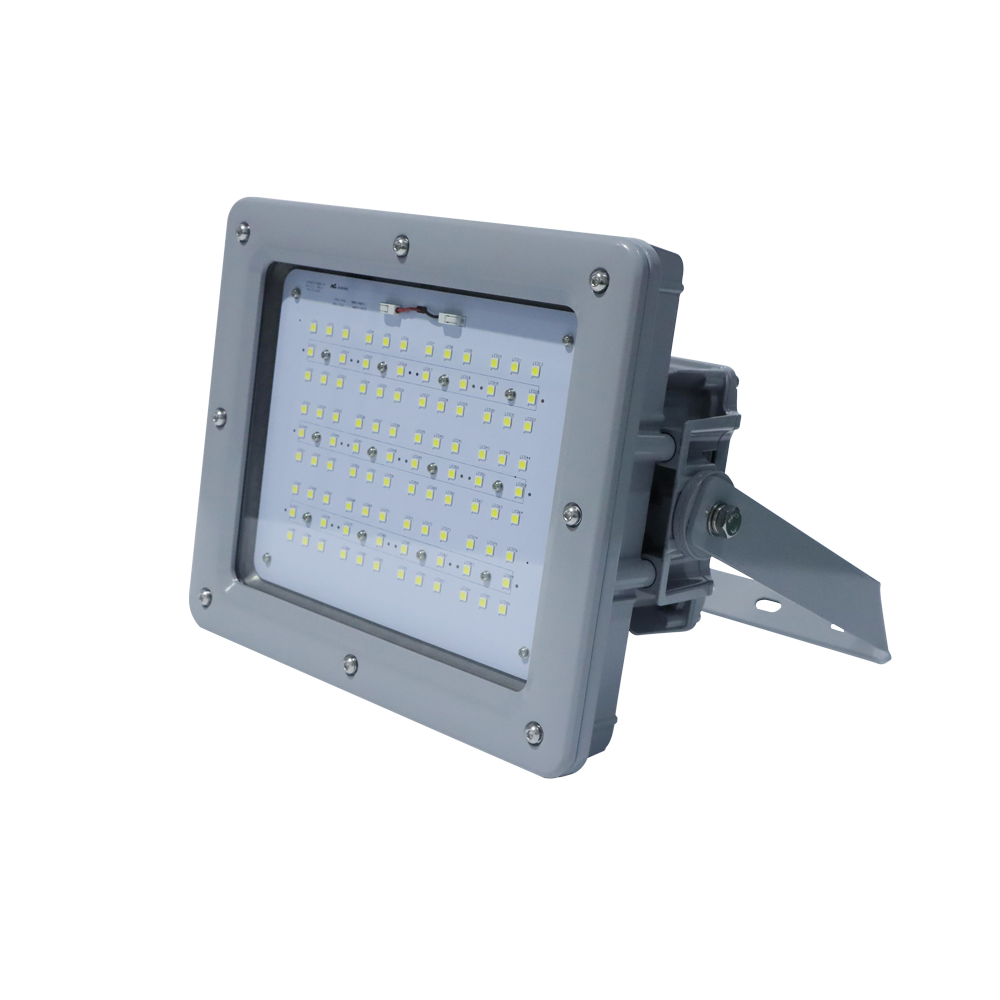

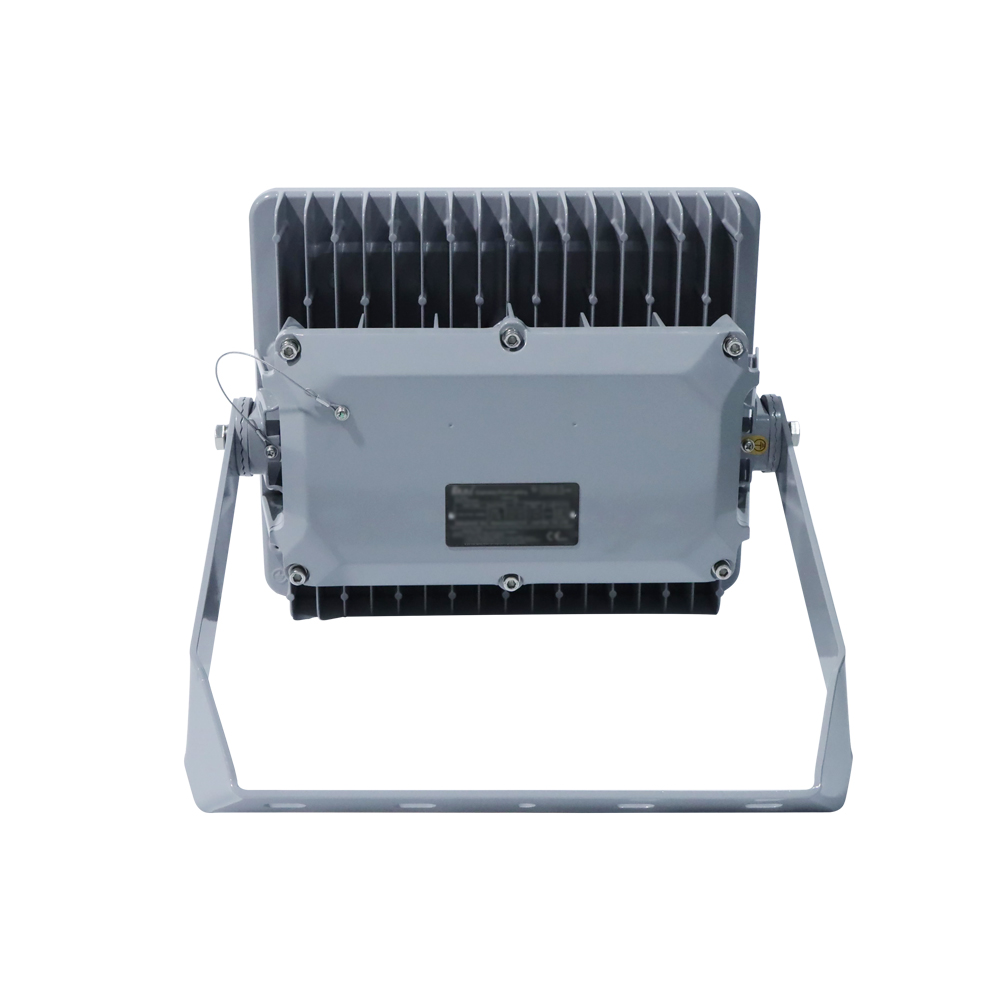

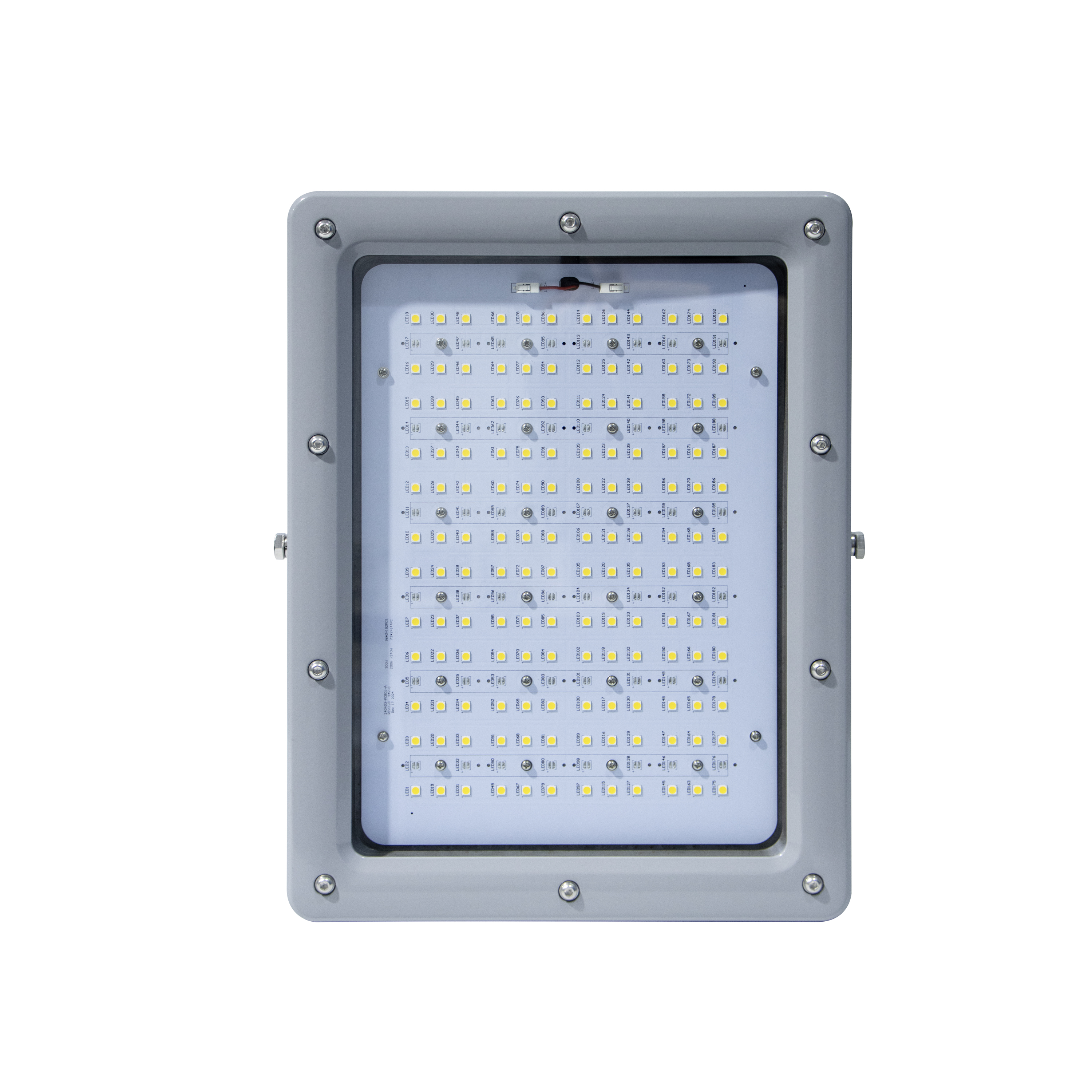

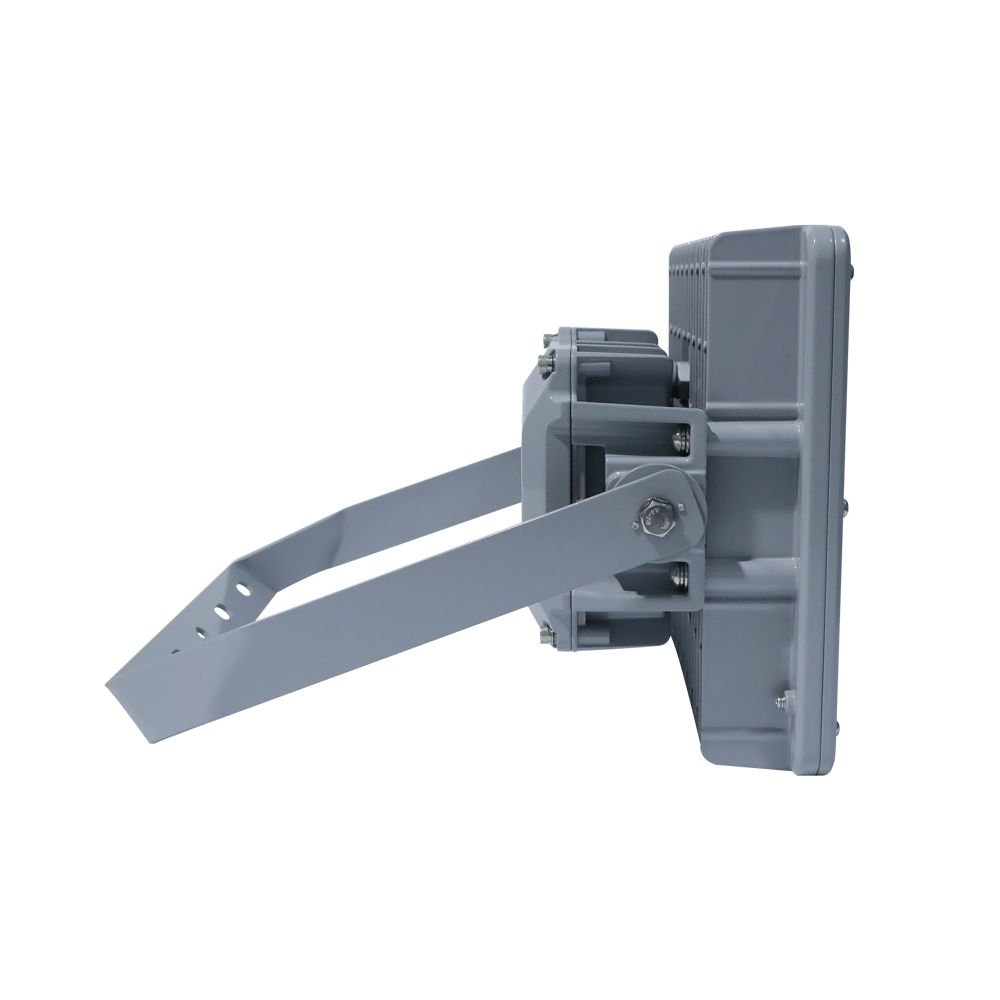

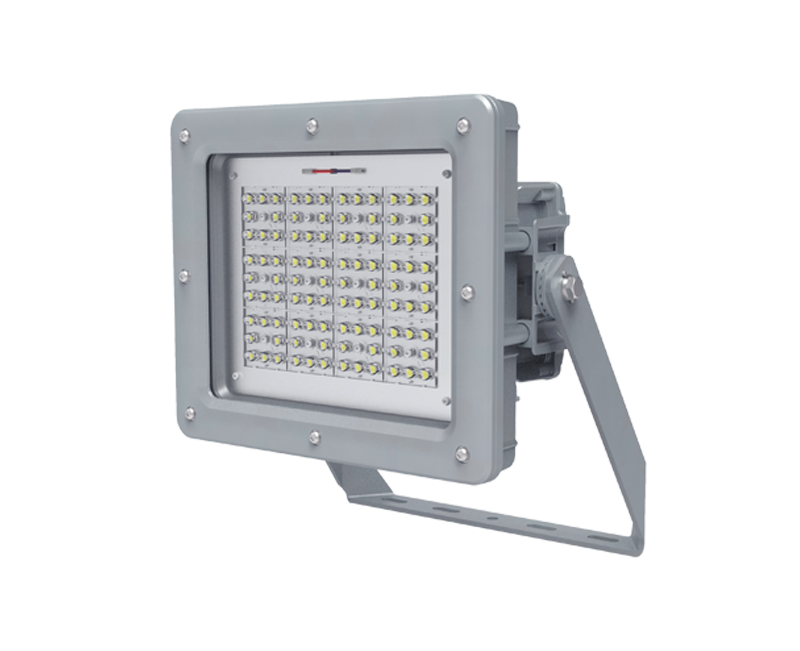

KHJ Lighting-SeaL(B) LED Flood Light

Features:

Wide power range from 80W to 300W
Luminaire efficacy up to 150lm/W
Widely Voltage: 100~277VAC 141~392VDC(80-240W), 220~277VAC 311~392VDC(300W)
347~480VAC 491~679VDC(optional)
Different beam angle for optional(Narrow, Medium,Wide)
Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
All exposed fasteners with quality stainless steel 316.

Contact us for this product

lmportant Specification:

Rated power	80W/100W/120W/150W/200W/240W/300W
Voltage	100~277VAC 141~392VDC(80-240W), 220~277VAC 311~392VDC(300W) 347~480VAC 491~679VDC(optional)
IP Grade	IP66
Ambient Temperature	-40°C~+55°C
Luminaire Efficacy	Up to 150lm/W
Power factor	>0.98
THD	<10%
Weight	6.4Kg(80W/100W/120W/150W)/8.9Kg(200W/240W/300W)
Size	332282167mm(80W/100W/120W/150W) 332435167mm(200W/240W/300W)
Enclosure	Aluminium
Color	Grey RAL 7040
Protective cover	Tempered glass, stand 7J impact
Cable Entry	2XNPT 3/4” (M201.5, M251.5 are optional)

1.Catalog

Catalog.pdf
Click Here

Simple Catalog.pdf
Click Here
2.Specification

S-Kseal-J-NV2.2-B.pdf
Click Here

S-Kseal-NV2.2-B.pdf
Click Here
3.User manual

I-Seal-NV2.1-A4.pdf
Click Here

I-Seal-J-NV2.1-A4.pdf
Click Here

Case study

The Seal(B) series consist of 3 sizes :medium size (80-150w)and large size (200-300w),can be widely used for hazardous area Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present;
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.
