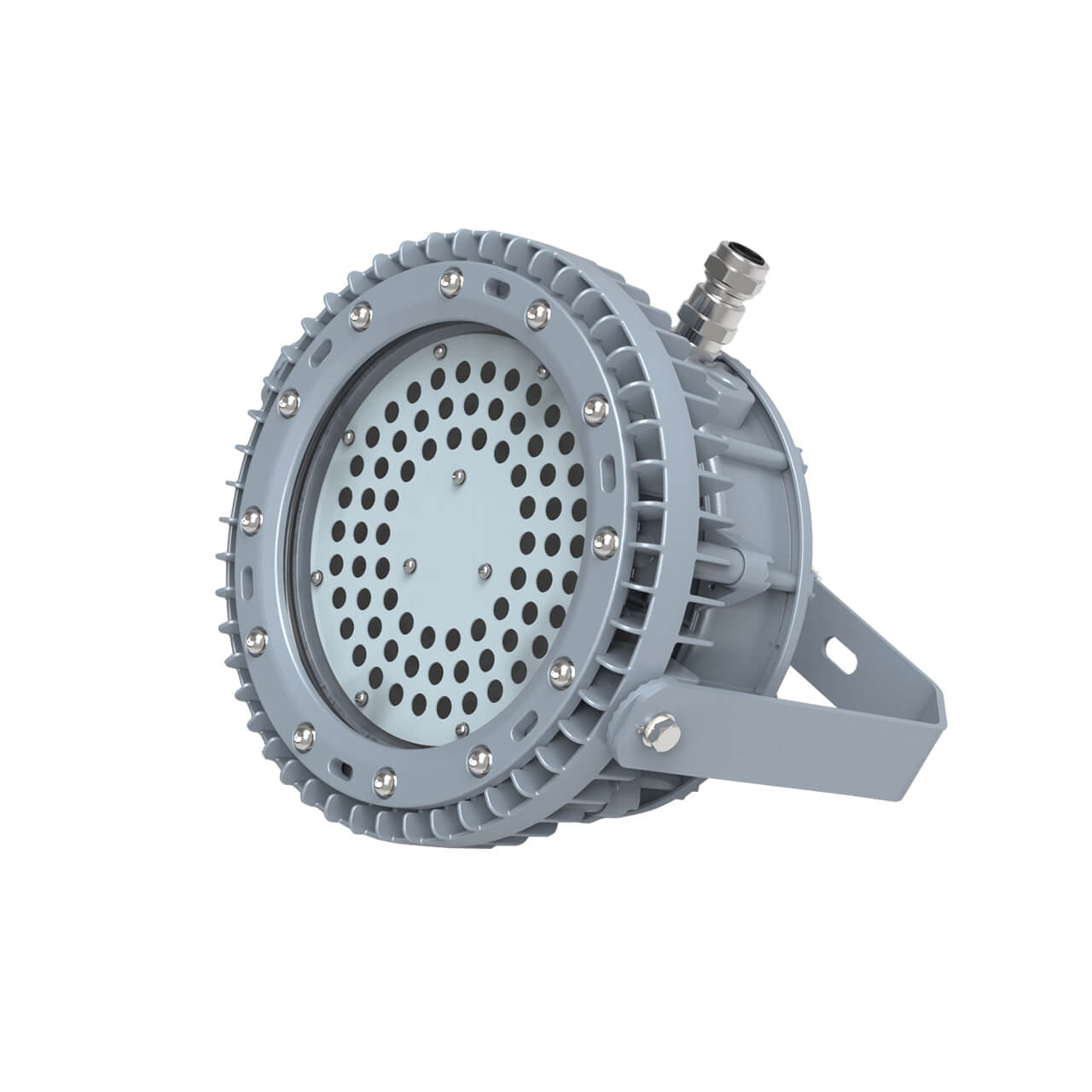

KHJ Lighting-Sealion Explosion-proof LED High Bay Light

Features:

  • Wide power range from 30W to 300W
  • Luminaire efficacy up to 140lm/w
  • Widely Voltage: 100-277VAC and 347-480VAC and 20-30VAC/DC
  • Different beam angle for optional(Narrow, Medium,Wide)
  • Die casting aluminum alloy enclosure, high impact resistance tempered glass lens.
  • All exposed fasteners with quality stainless steel 316


lmportant Specification:

Certificate ATEX, IECEx , CE, RoHS
Classification Group II,Zone 1 &21 and 2&22
Ex Mark Ex d, Ex tb
IP Grade IP66
Rated power 30W/45W/60W/80W/100W/120W/150W/200W/240W/300W
Voltage 100-277VAC , 347-480VAC and 20-30VAC/DC
Ambient Temperature -40°C~+55°C(normal),-20°C~+55°C(Emergency)
Luminaire Efficacy Up to 140lm/w
Power factor >0.98
THD <10%
Emergency function Optional
Weight 8.5kg(30-80W), 11kg(100-150W), 14kg(200-300W)
Size Φ275*195mm (30-80W)
Φ330*197mm (100-150W)
Φ415*197mm (200-300W)
Enclosure Die-casting aluminium alloy
Color Grey RAL 7040
Protective cover Tempered glass, stand 7J impact
Cable Entry M20*1.5,M25*1.5,3/4 NPT

Video

Case study

The Sealion series consist of 3 sizes :small size ( 30-80w),middle size (100-150w)and large size (200-300w),can be widely used for hazardous area Zone 1&2 ,Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present;
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

Our sealion installed in Malaysia Petronas-Chemical Ethylene Project provides clear and efficient illumination.

Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
