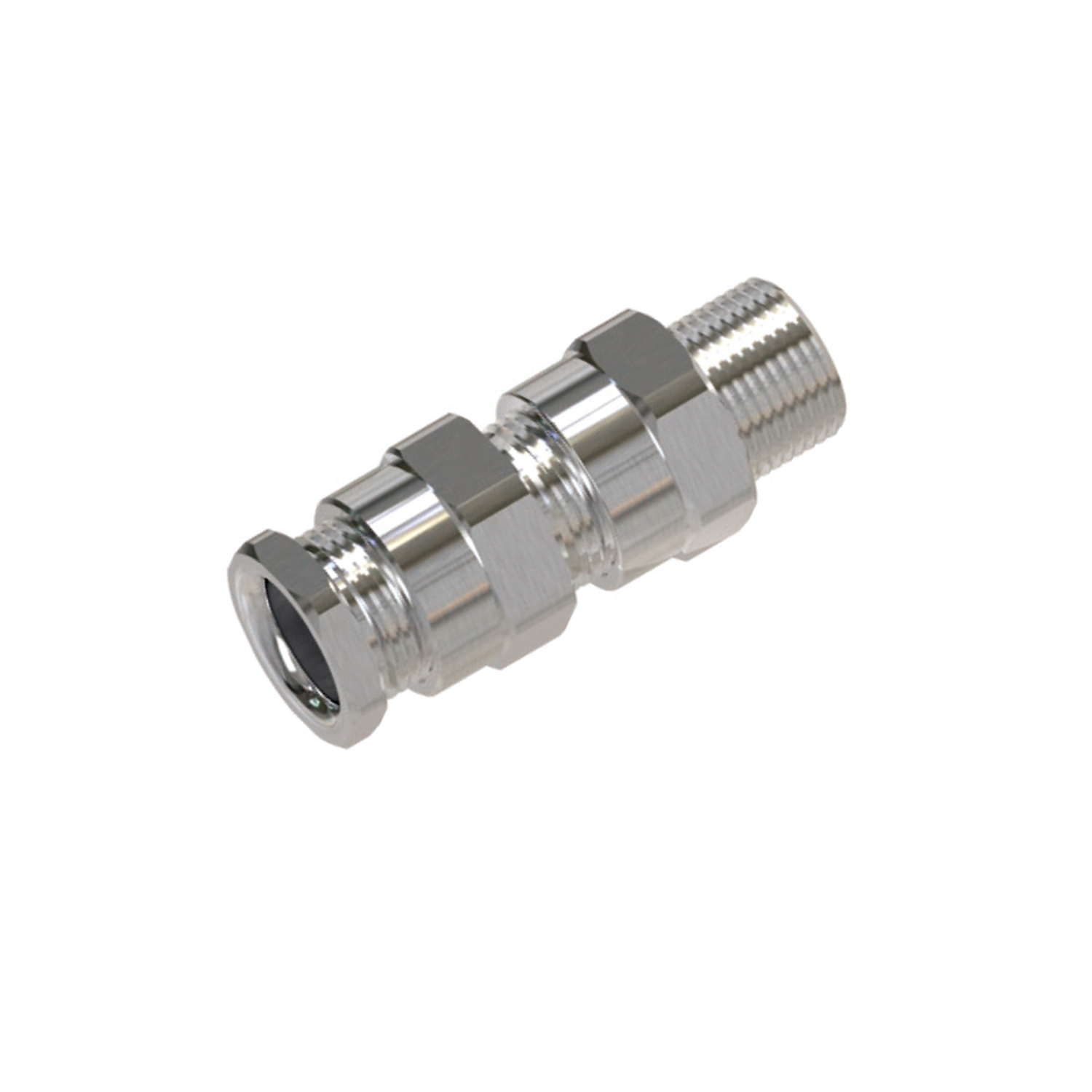

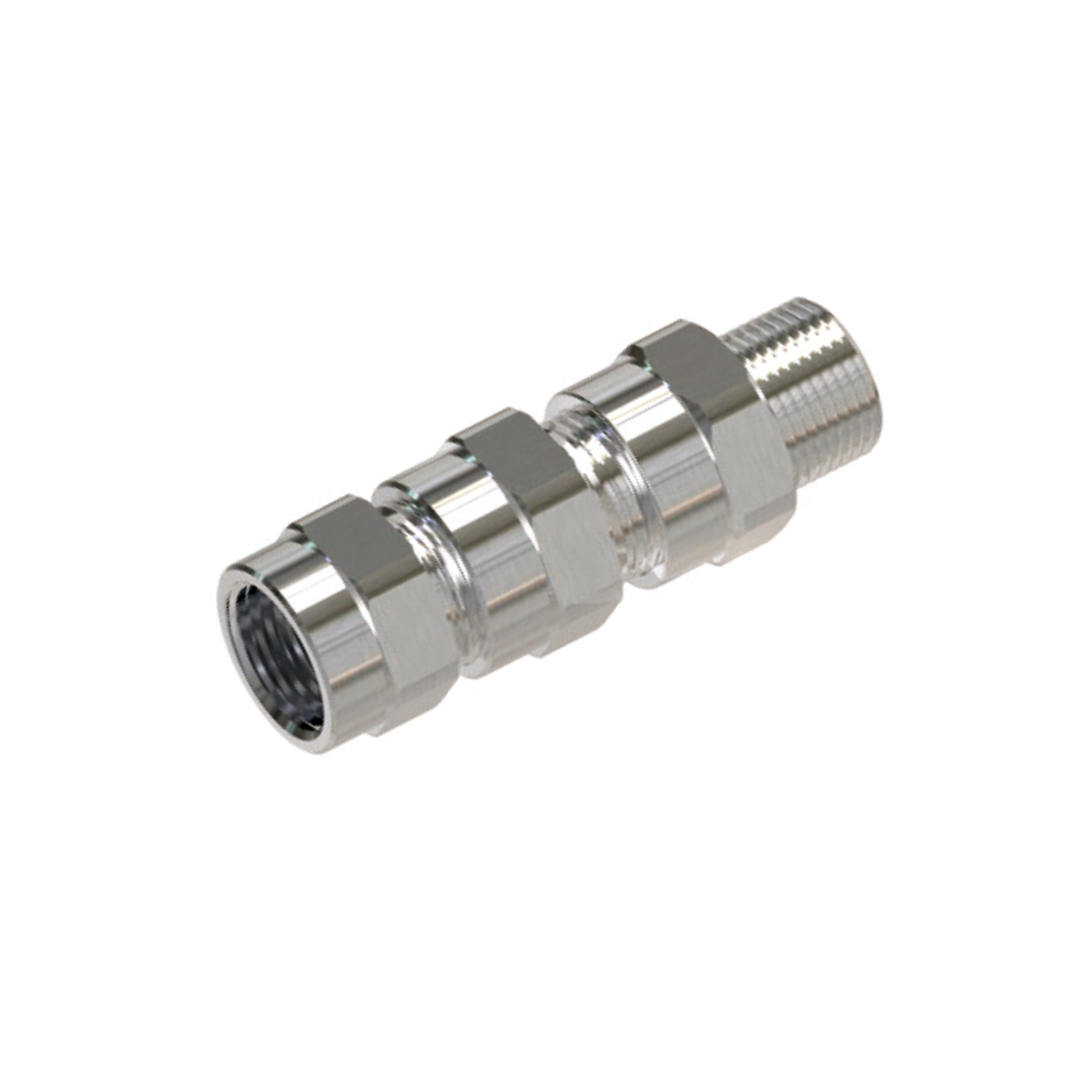

KBM-09,10 Explosion proof Unarmoured Cable Gland

Features:

  • Double Seal, Unarmoured Cable Gland
  • ATEX ,IECEx (Zone 1&2) ,CE, RoHS
  • For Ex i (intrinsic safety type) equipment
  • Type ‘d’, Type ‘e’, Type ‘nR’, Type ‘tb’ structure
  • NPT thread, Metric thread (M)

lmportant Specification:

Certificate ATEX, IECEx , CE, RoHS
Ex Mark II 2 G Ex db IIC Gb/ Ex db IIC Gb
II 2 G Ex eb IIC Gb/ Ex eb IIC Gb
II 3 G Ex nR IIC Gc/ Ex nR IIC Gc
II 2 D Ex tb IIIC Db/ Ex tb IIIC Db
Material Stainless steel, nickel plated brass, brass, etc.
IP Grade IP66, IP67, IP68(2m/72h)
Ambient Temperature -43°C~+120°C
Connection thread NPT thread, Metric thread (M)

Case study

The KBM-09,10 Cable Gland,can be widely used for hazardous area Zone 1&2 ,Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present; Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

Our sealion installed in Malaysia Petronas-Chemical Ethylene Project provides clear and efficient illumination.
