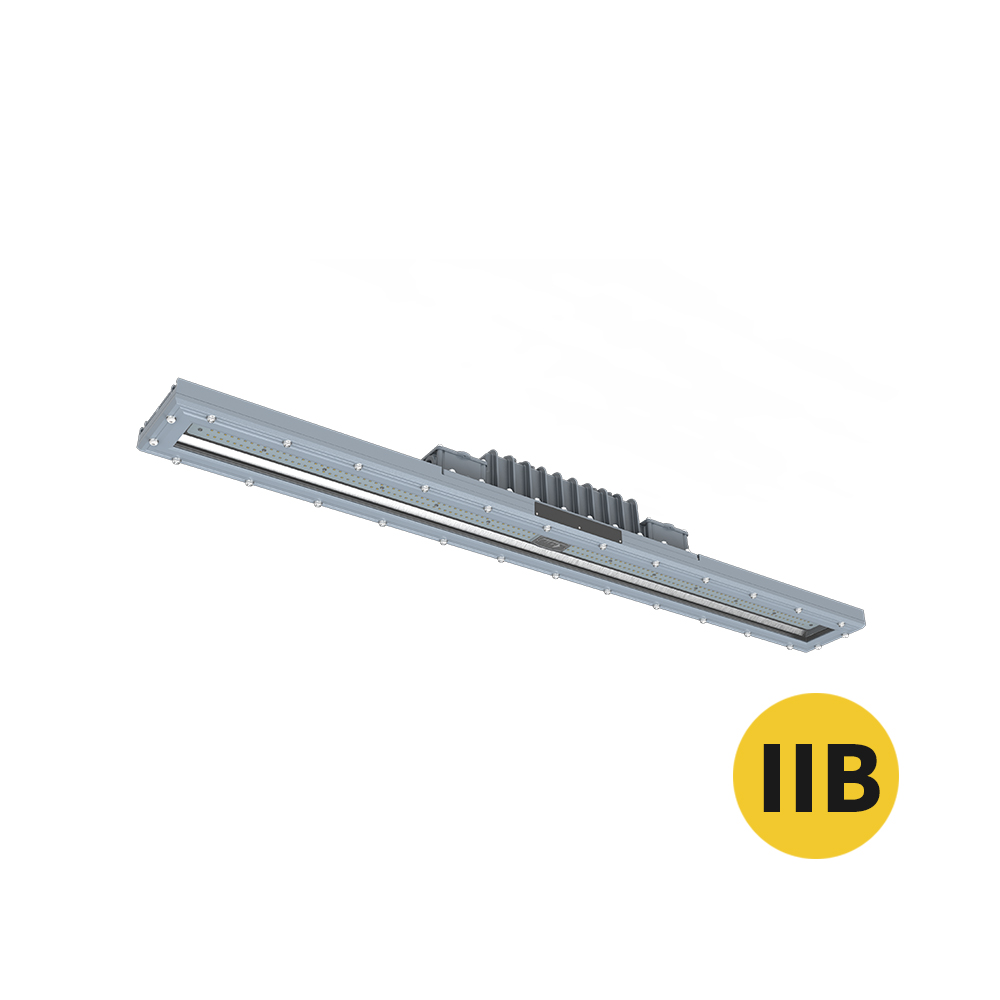

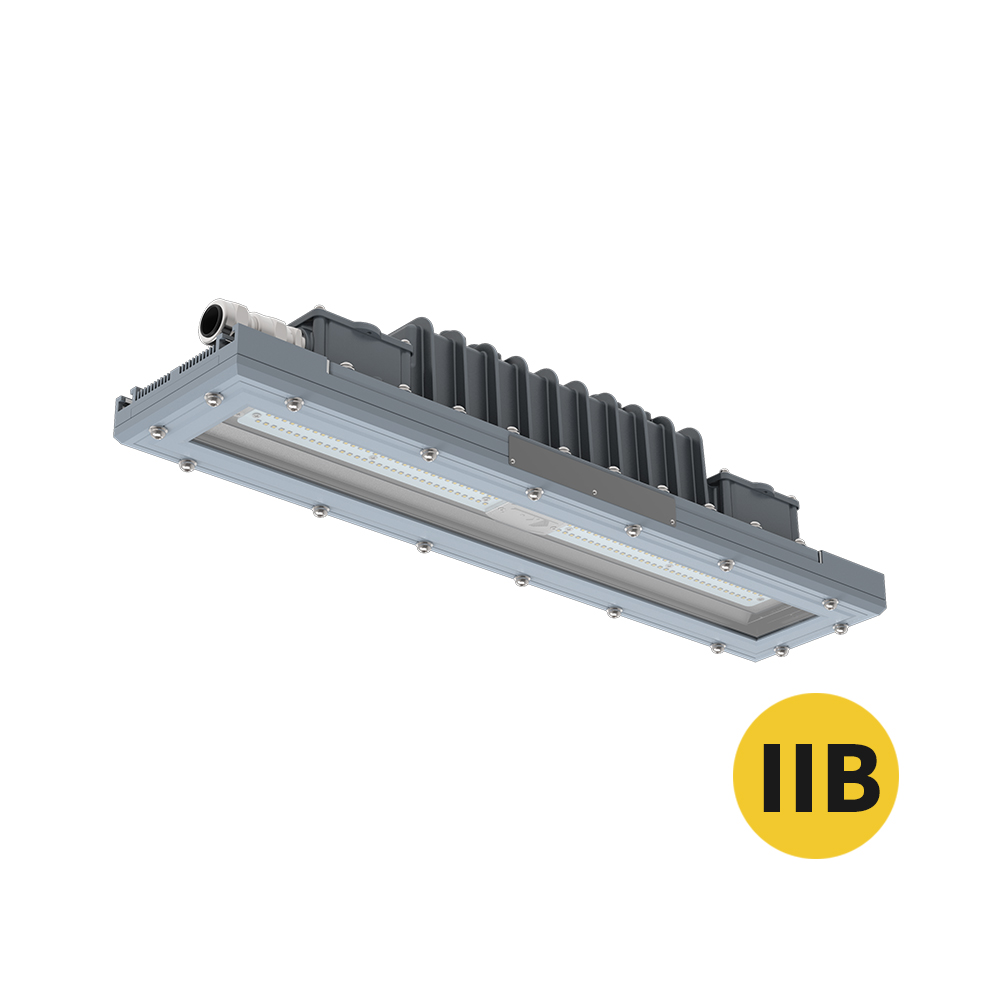

KHJ Lighting-Swordfish IIB LED ATEX IECEx Zone1,21 Fixtures

Features:

  • Wide power range from 18W to 72W
  • Luminaire efficancy up to 140lm/w
  • Widely Voltage: 100-277VAC and 347-480VAC and 20-30VAC/DC
  • Different beam angle for optional(Narrow, Medium,Wide)
  • Copper-free Aluminium enclosure, high impact resistance tempered glass lens.
  • All exposed fasteners with quality stainless steel 316


lmportant Specification:

Certificate ATEX, IECEx , CE, RoHS
Classification Group II IIB ,Zone 1 &21 and 2&22
Ex Mark Ex d eb, Ex tb
IP Grade IP66
Rated power 18W/36W/48W/56W/72W
Voltage 100-277 VAC/24-48 VAC 10-30 VDC/24-48 VDC/141-392 VDC
Ambient Temperature -20℃-+55℃
Luminaire Efficacy Up to 140lm/w
Power factor >0.98
THD <10%
Emergency function Optional
Weight 6.4Kg(0.6m)/8.7Kg(0.9m)
Size 600*136*124mm(18W/36W/48W) / 900*136*124mm(36W/48W/56W/72W)
Enclosure Copper-free Aluminium
Color Orange,RAL2011(optional grey RAL7040)
Protective cover Tempered glass, stand 7J impact
Cable Entry M20*1.5,M25*1.5,3/4 NPT

Video

Case study

The Swordfish series consist of 2 sizes : 600*136*124mm(18W/36W/48W) / 900*136*124mm(36W/48W/56W/72W),can be widely used for hazardous area Zone 1&2 ,Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present;
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

Our sealion installed in Malaysia Petronas-Chemical Ethylene Project provides clear and efficient illumination.

Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
Malaysia Petranas-Chemical Ethylene Project
