| Certificate | ATEX, IECEx , CE, RoHS |
| Classification | Group II,Zone 1 &21 and 2&22 |
| Ex Mark | Ex d, Ex t |
| IP Grade | IP66 |
| Rated power | 30W/60W |
| Voltage | 24-48VAC/ 100-240VAC 10-30VDC /24-48VDC / 141-339VDC |
| Ambient Temperature | -40°C~+55°C |
| Luminaire Efficacy | Up to 140lm/w |
| Power factor | >0.98 |
| THD | <10% |
| Weight | 5.5kg |
| Size | 311*284*190mm |
| Enclosure | Die-casting aluminium alloy |
| Color | Orange, RAL 2011( optional grey RAL7040) |
| Protective cover | Tempered glass, stand 7J impact |
| Cable Entry | 2 X NPT 3/4’’ (M20*1.5 , M25*1.5 are optional) |

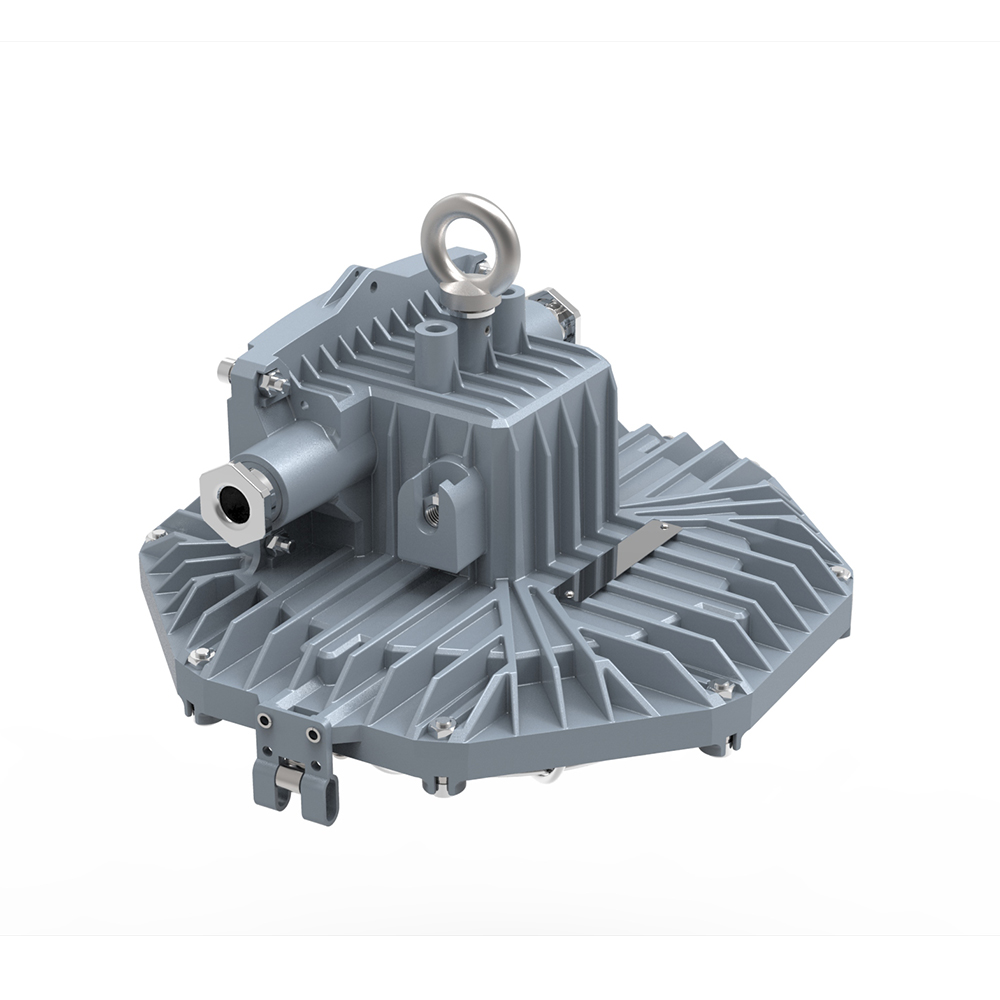

The Golden Frog series can be widely used for hazardous area Zone 1&2 ,Zone 2&22 with energy efficiency and durability for the longest-lasting performance.
Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other hazardous environments.

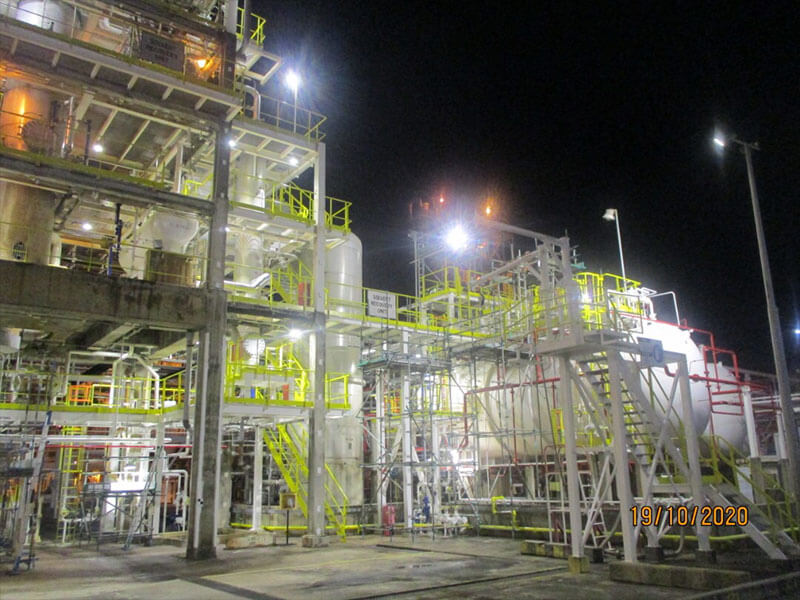

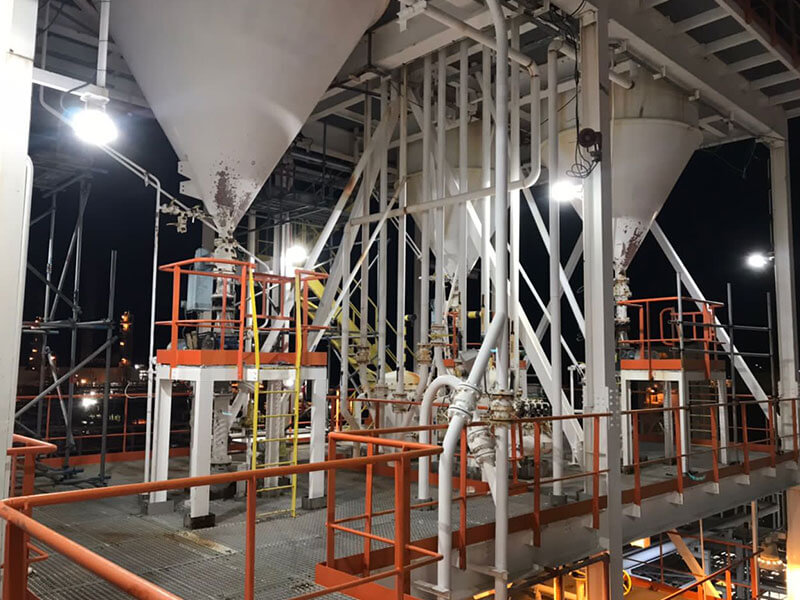

Our Golden Frog series installed in Petronas Chemical Polyethylene Sdn Bhd offers maximum reliability and high performance.
Focus on security and energy-saving, Carry brightness and Sustainable future.
